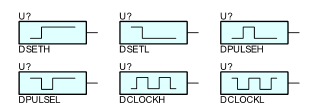

Digital Signal Generator
The digital signal generator can generate periodic signals such as clock signals, or simple set or reset signals.
Parameters
| Parameter | Description | Units | Default |
|---|---|---|---|
| DELAY | Initial delay. | s | |
| WIDTH | Pulse width. | s | |
| PERIOD | Period. | s | |
| FREQ | Frequency. This parameter is an alternative to the PERIOD and WIDTH parameter pair. | Hertz | |
| PULSEMODE | Pulse level (LOW=0, HIGH=1). | HIGH | |
| OUT_MODE | Outputs mode. | OUT | |
| IOMODEL | The name of an I/O model, which describes the device’s loading and driving characteristics. | DGTDEFIOMODEL | |
| POWER_NODE | Digital power node name. Is the node used by the interface subcircuits which connect analog nodes to digital nodes. | $G_DPWR | |
| GROUND_NODE | Digital ground node name. Is the node used by the interface subcircuits which connect analog nodes to digital nodes. | $G_DGND |
