The initial settings of the logic analyzer can be set using the following parameters.
Parameters
| Parameter | Description |
|---|---|
| PROBES | Specify the names of the Logic Probes. Separate the names with at least one space character. |
| TIMEDIV | Specify the settings for the time base on X axis. |
| SCREENCOLOR | Choose between a light or dark background screen. |

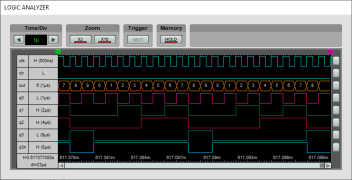

How to analyze the data
To observe the data click on the Hold button to keep the data in memory and then use the scroll bar to view the portion of interest.
To search for a particular combination of signals, click on the buttons to the right of each row to set the status of the corresponding signal and then click on the Trigger button. The first cursor (the green one) will be placed at the next point corresponding to the trigger settings.
