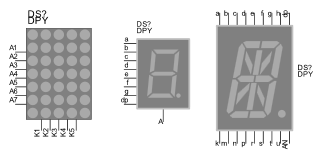

The LED display is a device whose color changes depending on the current or voltage. The individual segments or pixels of the display can be modeled using a diode or a resistor.
Parameters
| Parameter | Description | Default |
|---|---|---|
| Model | Specify the name of the model that you wish to use. Alternatively, you can directly specify the model parameters as SPICE attributes. See LED Model for information about model parameters. | |
| POWER_NODE | Digital power node name. Is the node used by the interface subcircuits which connect analog nodes to digital nodes. This parameter is optional and must be specified only if the LED is simulated in digital mode. | $G_DPWR |
| GROUND_NODE | Digital ground node name. Is the node used by the interface subcircuits which connect analog nodes to digital nodes. This parameter is optional and must be specified only if the LED is simulated in digital mode. | $G_DGND |
