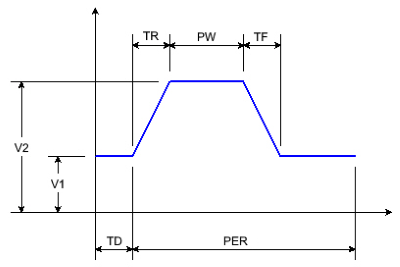

Use this source to create a repeating sequence of pulses.
You must specify a value for the V1 and V2 parameters; The remaining parameters, if not specified, are assigned a default value.
Parameters
| Parameter | Description | Units | Default |
|---|---|---|---|
| DC | DC Amplitude of the source used in operating point analysis. | V or A | 0 |
| V1 | Initial amplitude of the output with respect to the negative terminal (usually ground). | V o A | |
| V2 | Pulsed value. Maximum amplitude of the output swing. | V o A | |
| TD | Time delay. Delay before the source changes from Initial to Pulsed. | s | 0 |
| TR | Rise time. Time it takes to rise from Initial Voltage to Pulsed Voltage. | s | TSTEP |
| TF | Fall time. Time it takes to fall from Pulsed Voltage back to Initial Voltage. | s | TSTEP |
| PW | Pulse width. Time that the source remains at Pulsed Voltage. | s | TSTOP |
| PER | Period. Time between the start of the first pulse to the start of the second pulse. | s | TSTOP |
| PHASE | Phase. | degree | 0 |
| ACMAG | AC Magnitude of small signal voltage or current. Set this if you plan to do a small signal AC analysis based on this source. | V or A | |
| ACPHASE | AC Phase of small signal voltage or current. Set this if you plan to do a small signal AC analysis based on this source. If phase is omitted, a value of zero is assumed. | degrees | |
| DISTOF1 | Set this if you plan to do a distortion analysis based on this source. Specify the amplitude and phase using space as separator. If phase is omitted, a value of zero is assumed. | ||
| DISTOF2 | Set this if you plan to do a distortion analysis based on this source. Specify the amplitude and phase using space as separator. If phase is omitted, a value of zero is assumed. | ||
