In the Schematic panel are listed all the symbols and all the nets present in the wiring diagram.
You can expand folders by clicking the
to the left of the name.
To compress folders, click the
button.
When you expand a component folder, all component pins are listed.
When you expand a net folder, all pins connected to that net are listed.

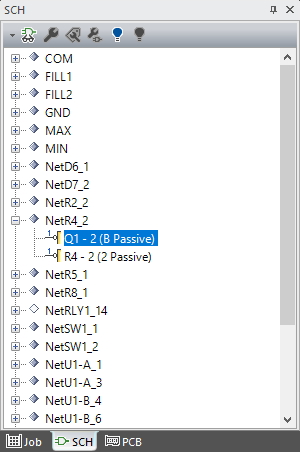

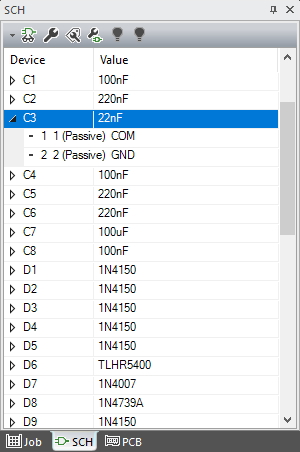

The following image shows the appearance of the Schematic panel:
 Tip: |
|---|
Pressing the right mouse button inside the Schematic panel displays the command menu. |
Legend of the symbols
| Symbol | Description |
|---|---|
|
|
The net is empty. |
|
|
The net contains no errors. |
|
|
There are messages related to the net. Choose the Message List command to display the messages. |
|
|
There are errors related to the net. Choose the Message List command to display the error messages. |
|
|
Pin connected to the net. |
|
|
Hidden pin connected to the net. |
|
|
Port connected to the net. |
|
|
Sheet entry linked to the net. |
Commands in the Schematic panel menu
| Command | Description |
|---|---|
|
Show Symbol
|
Highlights the selected symbol in the circuit diagram. |
|
Show Device
|
It highlights, in the PCB, the device corresponding to the selected symbol. |
|
Model
|
Opens the dialog box with the properties of the selected symbol. |
|
Attributes
|
Opens the dialog box with the properties of the selected symbol. |
|
Properties
|
Opens the dialog with the properties of the selected symbol. |
|
Highlight Net
|
Highlights the selected net in the wiring diagram. |
|
Do not highlight
|
Remove the highlighter. |
|
Message List |
Lists, in the Messages panel, all messages related to the selected net. |
|
Symbols |
Lists, in the Schema panel, all the components in the wiring diagram. |
|
Nets |
Lists, in the Schematic panel, all the nets in the wiring diagram. |
