Calculate the distance between the pads of a through-hole device. The calculation takes into account the IPC level selected in the Footprint wizard dialog box.
 Syntax: |
|---|
|
FWiz.CalcAxialSpacing(bodyLength, bodyWidth, terminalWidth, bVertical=false)
|
Parameters
| Parameter |
Description |

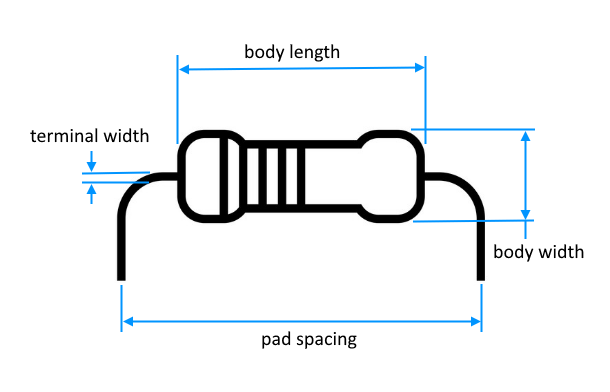

| bodyLength |
A string with the parameter name that specifies the length of the component body. The parameter must be defined with DefineDimensionRange in the OnInitialize event handler function.
|
| bodyWidth |
A string with the parameter name that specifies the width of the component body. The parameter must be defined with DefineDimensionRange in the OnInitialize event handler function.
|
| terminalWidth |
A string with the parameter name that specifies the diameter of the component terminals. The parameter must be defined with DefineDimensionRange in the OnInitialize event handler function.
|
| bVertical |
Specify true if the component is arranged vertically otherwise false.
|
Return Value
Returns the calculated value for the parameter: pad spacing.
Example
|
|
 Copy code
|
|
See also
