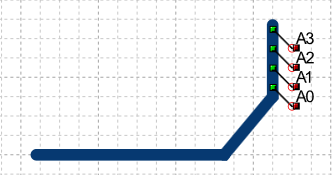

When a Bus Entry is selected and the Edit tool is active, the control hooks at the anchor point and at the origin point of the name are displayed.

2

When the control hooks are visible, the following operations can be performed:

  • Activate and drag the hook to the anchorage point to move the object.

  • Activate and drag the hook to the origin point of the name to reposition the name.

  • Click anywhere on the bus entry and drag the mouse to move the object.

  • Right-click on a hook to display the corresponding menu of commands.

SuggerimentoTip:

While dragging a hook you can press the TAB key to constrain the horizontal or vertical displacement from the starting position.

Commands in the hook menu

Command Description

Move All

Moves all active hooks. Displays the Move dialog box.

Deselect All

Deactivates all active hooks.

Select Hook

Activates the clicked hook.

Deselect Hook

Disables the clicked hook.

Move Text

Displays the dialog box in which to specify the offset.

Rotate Text

Displays the dialog box in which to specify the rotation angle of the name.

Move Bus Entry

Displays the Move dialog box.

Rotate Bus Entry

Displays the Rotate dialog box.

Proprietà Bus Entry

Displays the Properties dialog box.

Show reference point

Displays the transformation center of the selection. The transformation center is initially hidden and is set in the center of the selection rectangle. See the Transformation center.
