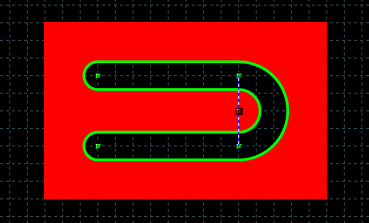

A deletion object has the same geometric structure as a shape object and can therefore consist of a sequence of linked line, arc or curve segments. When a deletion object is selected and the Edit tool is active, the control hooks of the individual segments that make it up are displayed.
When the control hooks are visible, the following operations can be performed:
Drag the hooks located in the vertices of the linear segments.
Drag the hooks on the ends of the arcs to adjust the opening of the arc.

Drag the hook placed in the center of an arc to move the arc.

Drag the control hooks of a Bezier curve.

Drag the control hooks of a spline curve.
Click anywhere on the object and drag the mouse to move the object.
Rightclick on a hook to display the corresponding menu of commands.
Consecutive Bezier Curves
When two Bezier curves are consecutive, the common point between the two curves can be set to one of the following modes:
Angular point. The angular points have two control hooks that can be moved independently; the curve course through the angle will not continue smoothly but will form an angle.
Slight damping point. The two angle control hooks are oriented in parallel and can only be moved simultaneously. The lines of the control hooks can be of different lengths, allowing the degree of curvature to be varied.
Symmetrical point. The two angle control hooks are aligned in parallel and have the same length. They can only be moved simultaneously and with an equal degree of curvature in both directions.
Comandi nel menu del gancio
Command  Description

Move All
Moves all active hooks. Displays the Move dialog box.
Deselect All
Deactivates all active hooks.
Select Hook
Activates the clicked hook.
Deselect Hook
Disables the clicked hook.
Move Vertex
Displays the dialog box in which to specify the new vertex coordinates.
Insert Vertex
Adds a new linear segment by inserting a vertex at the midpoint of the segment.
Remove Segment
Removes the segment to which the hook belongs.
Convert to Line
Converts the segment to a line.
Convert to Arc
Converts the segment to an arc.
Convert to Bezier
Converts the segment to a Bezier curve.
Convert to Spline
Converts the segment to a spline curve.
Toggle Direction
Reverses the direction of the arc.
Set Center
Set the center of the arc.
Set Axes
Sets the length of the axes of an ellipse arc.
Start Angle
Displays the dialog box in which to specify the new value of the starting angle.
End Angle
Displays the dialog box in which to specify the new value of the end angle.
Move Point
Displays the dialog box in which to specify the new coordinates of the point of a spline curve.
Insert Point
Adds a new point in a spline curve.
Remove Point
Removes a point from a spline curve.
Angular
Sets the point of a Bezier curve as the angular point.
Smooth
Sets the point of a Bezier curve as a slight damping point.
Symmetrical
Sets the point of a Bezier curve as a symmetrical point.
Move Deletion
Displays the Move dialog box.
Rotate Deletion
Displays the Rotate dialog box.
Properties Deletion
Displays the Properties dialog box.
Show reference point
Displays the transformation center of the selection. The transformation center is initially hidden and is set in the center of the selection rectangle. See the Transformation center.
